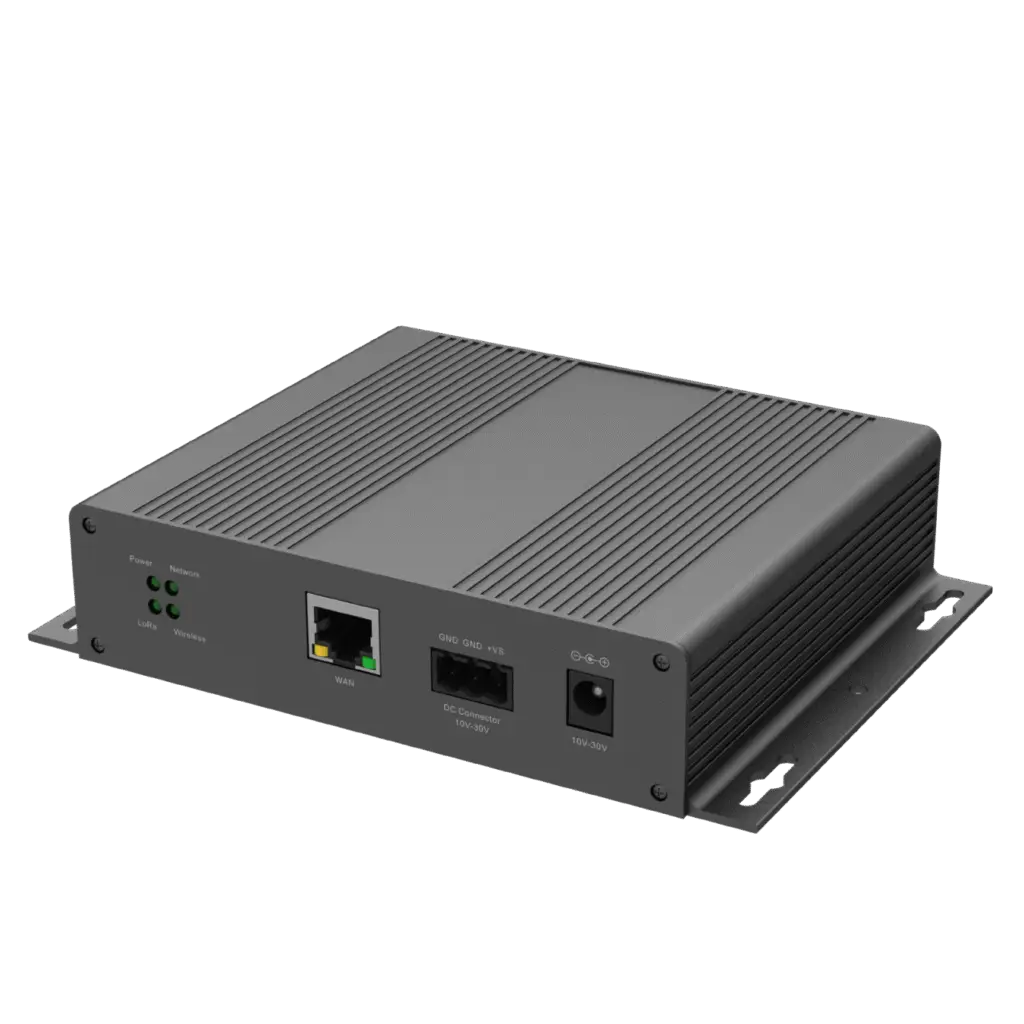

Indoor IoT Gateway
Versatile IoT Gateway for Wide-Area Connectivity
- Support Packet Forward/Basic Station Mode
- Support Spectral Scan &Listen Before Talk(LBT)
- Various Internet connections: Ethernet, Wi-Fi, or 3G/4G backhaul
- Web UI for LoRa and network configuration
- Support local firmware upgrade
- CAN 2.0 design is reserved for future data communication purposes
- Customizable SKU: (1) LTE-M back-haul (2) Wi-Fi back-haul with GPS
- Customizable LTE-M 3G/4G module for different Country
Unlock reliable indoor IoT connectivity for your manufacturing operations with Manusphere’s Indoor IoT Gateway.
In today’s manufacturing landscape, harnessing real-time data from your facility is crucial for optimizing efficiency, reducing downtime, and improving safety. Manusphere’s Indoor IoT Gateway serves as the vital link, providing robust and reliable connectivity for your diverse network of IoT sensors and devices. Manusphere helps you integrate this powerful gateway seamlessly into your operations, unlocking the full potential of your smart facility strategy.
Bridge the Data Gap in Your Facility
Deploying IoT solutions within complex manufacturing environments presents unique challenges. Manusphere’s Indoor IoT Gateway is engineered to overcome these hurdles:
| Challenge | Solution |
|---|---|
| Ensuring reliable connectivity for numerous sensors spread across indoor factory floors or warehouses. | Utilizes advanced IoT gateway technology supporting multiple concurrent channels with high sensitivity for dependable data transmission from thousands of devices, even in challenging RF environments. |
| Integrating the gateway into existing network infrastructure or areas with limited connectivity options. | Offers flexible backhaul options, including standard Ethernet (RJ45) and optional upgrades for Wi-Fi or 4G LTE connectivity, ensuring your data always reaches its destination reliably. |
| Finding suitable power sources near optimal installation points for maximum IoT coverage. | Provides versatile power inputs, including a standard DC adapter (12V), a wide-range DC terminal block (10–30V) suitable for industrial power lines, and Passive Power over Ethernet (PoE), simplifying installation and reducing wiring costs. |
| Protecting sensitive operational data transmitted wirelessly. | Incorporates robust AES 128-bit encryption to secure data communications between your sensors and the network, ensuring data integrity and confidentiality. |
Key Features & Manufacturing Benefits
High-Performance IoT Core
Built on a high-performance IoT core, this gateway delivers superior connectivity capable of managing a large number of devices while minimizing interference. This ensures reliable data streams from critical sensors monitoring machine health, environmental conditions, and energy usage.
Flexible Network Integration
Whether connecting through your existing wired LAN using the RJ45 port with PoE capability or utilizing wireless backhaul via 4G LTE or Wi-Fi, Manusphere’s IoT Gateway ensures seamless integration into your IT infrastructure. This adaptability guarantees continuous data flow essential for real-time decision-making.
Adaptable Powering for Easy Deployment
The multiple power options (DC Jack, Terminal Block, Passive PoE) give you unparalleled flexibility in placing the gateway exactly where needed for optimal coverage, without being constrained by the availability of standard power outlets. PoE significantly simplifies installation in hard-to-reach areas.
Compact and Resilient Design
With its small footprint (120 x 136 x 35mm) and operating temperature range (-10℃ to 55℃), the Piconext gateway can be discreetly installed in various indoor locations, including control cabinets or near production lines, operating reliably in typical industrial conditions.
Enhanced Data Context with Optional GPS
For applications requiring precise timing or location data, Manusphere’s IoT Gateway offers optional GPS functionality that provides accurate time-stamping for sensor readings—crucial for process analysis—and assists in locating mobile assets within large facilities.
Technical Specifications: Manusphere Indoor IoT Gateway
| Feature | Details |
|---|---|
| Model Name | Manusphere Indoor IoT Gateway |
| Frequency | EU 863–870 MHz / US 902–928 MHz |
| Number of Channels | Up to 8 concurrent channels for IoT data transmission |
| Core Platform | High-performance IoT chipset architecture |
| Antenna Configuration | 1 external IoT antenna, 1 external 4G antenna, 1 external Wi-Fi antenna (optional), 1 external GPS antenna (optional) |
| Transmit RF Power | 0.5 W (up to 27 dBm) |
| Receive Sensitivity | -140 dBm |
| Operating Temperature | -10°C to 55°C |
| Storage Temperature | -20°C to 60°C |
| Power Options |
(1) Power Adapter: DC 12 V/2 A (2) 3-Pin Connector Power Supply: DC 10–30 V (3) Passive PoE: 10–30 V |
| Dimensions | L: 120 mm × W: 136 mm × H: 35 mm |
| Weight | 0.40 kg |
| Interfaces |
1 WAN RJ45 10/100 Mbps (with passive PoE capability) 1 Reset button 1 SIM card slot (2FF) 1 DC jack input 4 LED indicators 1 CAN 2.0 (optional) |
| Additional Connectivity | GPS + GLONASS, L1C/A band (optional for time-stamping) |
| Backhaul Options |
Wi-Fi: 802.11b/g/n, 1×1, 2.4 GHz (optional) 4G LTE: PCIe module (LTE Cat 4 or Cat M1/NB2) (optional) |
| Security | AES 128-bit encryption |
| Certifications | FCC / IC / CE |
| Notes | Optional features such as Wi-Fi and GPS are available in specific configurations based on customer requirements. |
Ideal Applications in Manufacturing
- Condition Monitoring (Vibration, Temperature, Humidity)
- Environmental Monitoring (Air Quality, Gas Detection)
- Energy Management (Submetering, Consumption Monitoring)
- Smart Lighting Control
- Indoor Asset Tracking & Management
- Safety Monitoring (Emergency Button Systems)
Integrate the Browan Indoor Piconext Gateway into your manufacturing ecosystem with Manusphere’s expertise. We help you design, deploy, and manage tailored IoT solutions that leverage this reliable gateway to drive tangible operational improvements.
